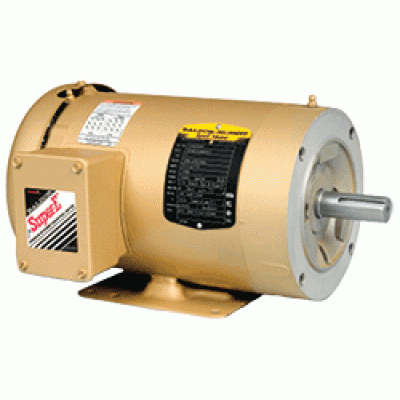

5 HP 3 PHASE 1725 RPM C-FACE 1 1/8" SHAFT (2664)

Three Phase, C-Face Totally Enclosed Fan Cooled with Base

Applications:

• Pumps
• Fans
• Conveyors
• Machine tools

Gear reducers

• Pressure cast aluminum end plates with ribbed design for rigidity
• Ball bearings
• Locked drive end bearing
• Heavy gauge steel frame

• Specification Number: 36A002T846H1
• Shaft: 1-1/8"
• Frame: 184TC
• Horsepower: 5.0 3PH
• Voltage: 208/230/460
• Hertz: 60
• Phase: 3
• Full load amps: 15.4 14.2/7.1
• RPM: 1750
• Service factor: 1.15
• Full load efficiency: 87.5
• Power factor: 75
• Shipping Weight (approx.) 81 lbs.
