HIGH DRAW FIXED CHEMICAL INJECTORS by GP

Downstream pressure wash chemical injectors are installed after the pump. In order to function, the pressure must be lowered with the use of either a dual lance and soap nozzle, a fixed nozzle, a dual nozzle holder, or an adjustable nozzle holder. Water enters the inlet of the injector and creates a venturi effect which drops the pressure and suctions the chemical from container. Chemical can be injected either in concentrated form or in diluted form. The injector contains a check valve to prevent water from flowing into the chemical container while in high pressure mode.

NOTE: Length of hose will determine ability of injector to work properly. It is recommended to keep hose length at 100 feet or less.

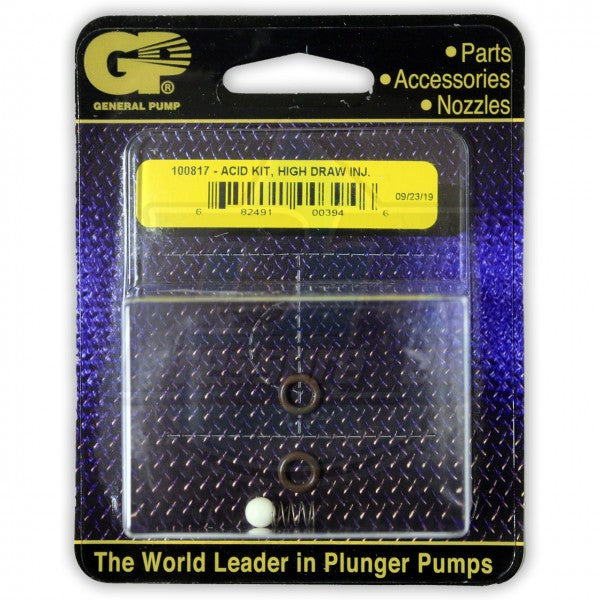

ACID KIT INSTALLED IN THESE INJECTORS (I.E. HAS CERAMIC BALL INSTEAD OF STAINLESS STEEL)

SPECIFICATIONS:

• Chemical draw up to 20%
• 5000 PSI maximum
• 190 F maximum
• 3/8" MPT inlet & outlet
• Repair Kit is available here

Available in

1.8 - 2-3 GPM (5188)

2.1 - 3-5 GPM (6740)

2.3 - 5-8 GPM (6741)
