Shurflo Diaphragm Pump | 12V & 115V | Chemical Resistant | Self-Priming

Shurflo Diaphragm Pumps – 12V & 115V Chemical-Resistant Self-Priming Pumps

Handle chemical transfer, soap injection, and low-pressure fluid delivery with confidence using Shurflo diaphragm pumps. Built with chemical-resistant Santoprene diaphragms and EPDM valves, these pumps self-prime up to 8 feet and can run dry without damage — making them a reliable workhorse for pressure wash chemical systems, soft wash setups, and fluid transfer applications.

Key Features

• Self-priming up to 8 feet
• Chemical-resistant materials throughout
• Can run dry without damage
• Santoprene diaphragm & EPDM valves
• 3/8" FPT inlet and outlet
• Available in 12V and 115V models

Installation tip: Mount with the "wet end" down to protect the motor in the event of a seal leak.

Available Pump Models

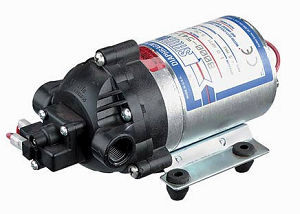

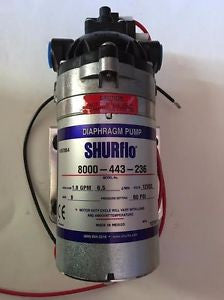

• 8000-443-236 — 12V | 1.8 GPM | 60 PSI
• 8000-543-238 — 12V | 1.6 GPM | 100 PSI

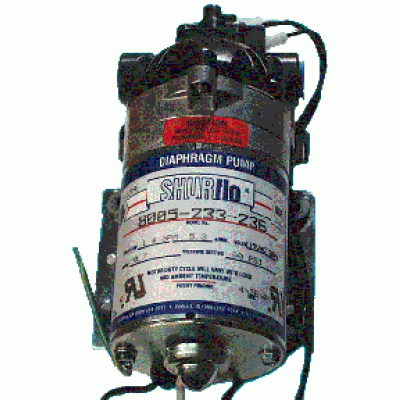

• 8005-233-236 — 115V | 1.4 GPM | 60 PSI
• 8000-813-238 — 115V | 1.6 GPM | 100 PSI

Available Shurflo Parts & Accessories

• (SKU 3131) 94-385-32 — Santoprene Diaphragm Kit
• (SKU 4149) 94-380-02 — 115V Pump Head
• (SKU 3100) 94-375-06 — Santoprene Switch 60 PSI
• (SKU 3044) 94-422-908 — Santoprene Switch 100 PSI
• (SKU 3098) 94-390-05 — Viton Valve Kit
• (SKU 3097) 94-390-06 — EPDM Valve Kit
• (SKU 3099) 94-395-06 — Santoprene Diaphragm
• (SKU 3043) 94-395-05 — Viton Diaphragm Kit
• (SKU 3763) 1/2" FPT Wingnut x 3/8" Barb
• (SKU 3101) 1/2" FPT Wingnut x 3/8" Elbow Barb
• (SKU 3465) 8-145-00 — 3/8" MPT x 1/2" Adapter
