General Pump Electric Flange & Coupler | NEMA 56C Pump Motor Mount

General Pump Electric Flanges & Couplers – NEMA 56C Motor Mount

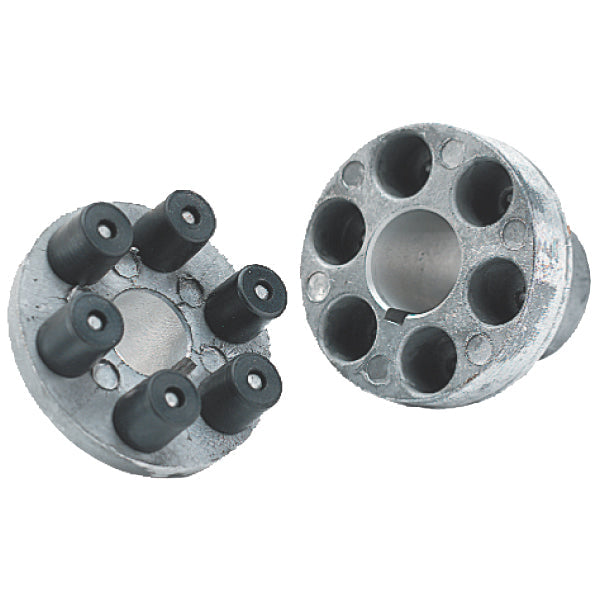

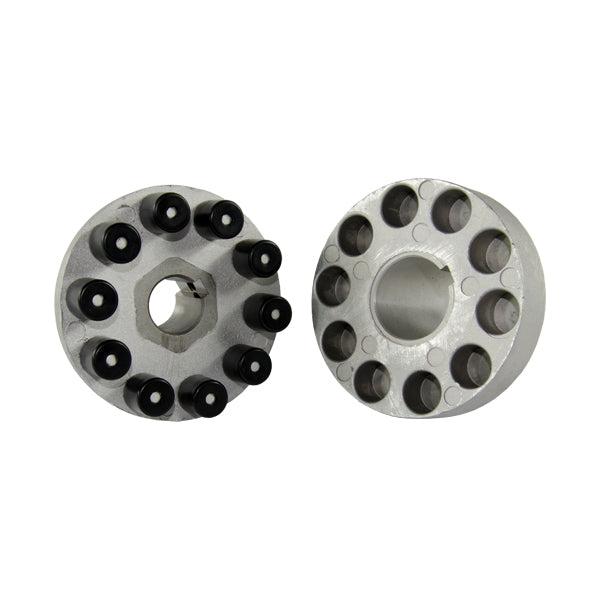

Connect your General Pump to an electric motor cleanly and confidently with these heavy-duty electric flanges and couplers. Engineered for quiet, low-maintenance operation, this cast aluminum flange and self-adjusting resilient coupling system is the professional-grade solution for electric-drive pressure washer builds and retrofits.

Key Features

• Heavy-duty cast aluminum flange construction
• Self-adjusting resilient coupling for quiet, smooth power transfer
• Low maintenance drive system
• Compact design for tight installations
• All required mounting hardware included — ready to assemble

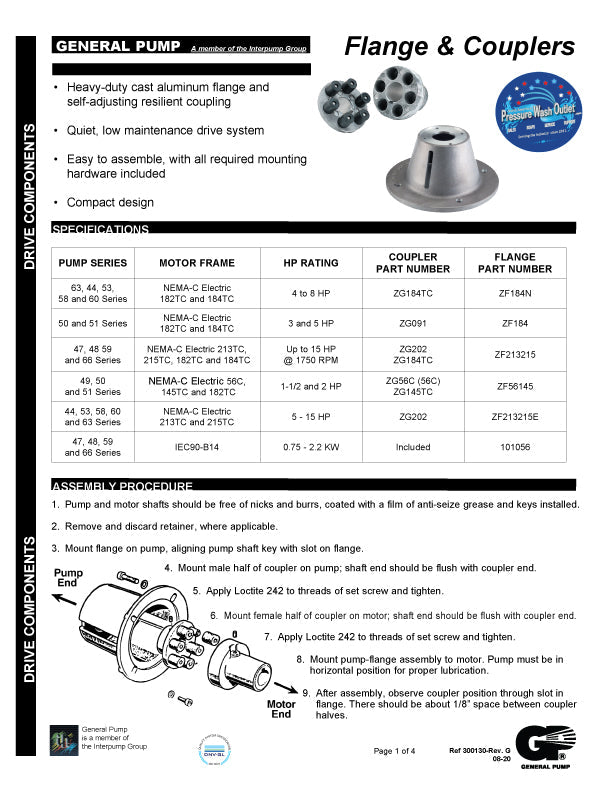

Assembly Instructions

1. Ensure pump and motor shafts are free of nicks and burrs; coat with anti-seize grease and install keys.
2. Remove and discard retainer where applicable.
3. Mount flange on pump, aligning pump shaft key with slot on flange.
4. Mount male coupler half on pump — shaft end flush with coupler end. Apply Loctite 242 to set screw threads and tighten.
5. Mount female coupler half on motor — shaft end flush with coupler end. Apply Loctite 242 to set screw threads and tighten.
6. Mount pump-flange assembly to motor. Pump must be horizontal for proper lubrication.
7. After assembly, verify ~1/8" space between coupler halves through the slot in the flange.
