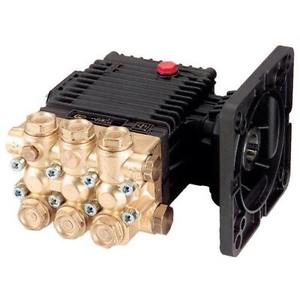

EZ2542E PUMP by GENERAL PUMP (3195)

The EZ2542E pump by General Pump features

• Triplex Plunger Pump
• Direct Drive with Electric Flange
• Maximum Volume: 4.2 GPM
• Maximum Discharge Pressure: 2500 PSI
• Maximum Inlet Pressure: 125 PSI
• Maximum Pump Speed: 1750 RPM
• Minimum Horsepower Requirements: 7.2 bhp
• Bore: .708" (18mm)
• Stroke: .612" (13mm)
• Crankcase Capacity: 14 oz. Nondetergent SAE 30W oil
• Maximum Fluid Temperature: 165 Degrees F.
• Inlet Port Thread: 1/2" FPT
• Discharge Port Thread: 3/8" FPT
• Shaft Diameter: 1-1/8" ID flange
• Dimensions: 8.8" x 8.8" x 6.3"
• Weight: 20 lb.

Replacement Parts Available

Valves - Kit 123

Piston Oil Seal - Kit 23

Packing's - Kit 127

Packing's with Brass - Kit 131

Pistons - 44040109

Valve Caps - Kit 124

Piston Bolts - 99317500

Crank Oil Seal - 90169000
