Product Information

The TP2530J34 pump features

Max. GPM 2.88
Max. PSI 2500
RPM 3400
Bore .591″ – 15mm
Stroke .283″ – 7.2mm
Required HP 7.4 GHP
Shipping Weight 11.4 lbs
Comes with SAE J609A Flange


Hollow Shaft – General Pump 51 Series Specs:


Max. Inlet Pressure 125 PSI
Max. Fluid Temperature 165 Degrees Fahrenheit
Inlet Port Thread 3/8″ – 19 BSP-F
Discharge Port Thread 1/4″ – 19 BSP-F
Shaft Diameter 3/4″ (.750″)

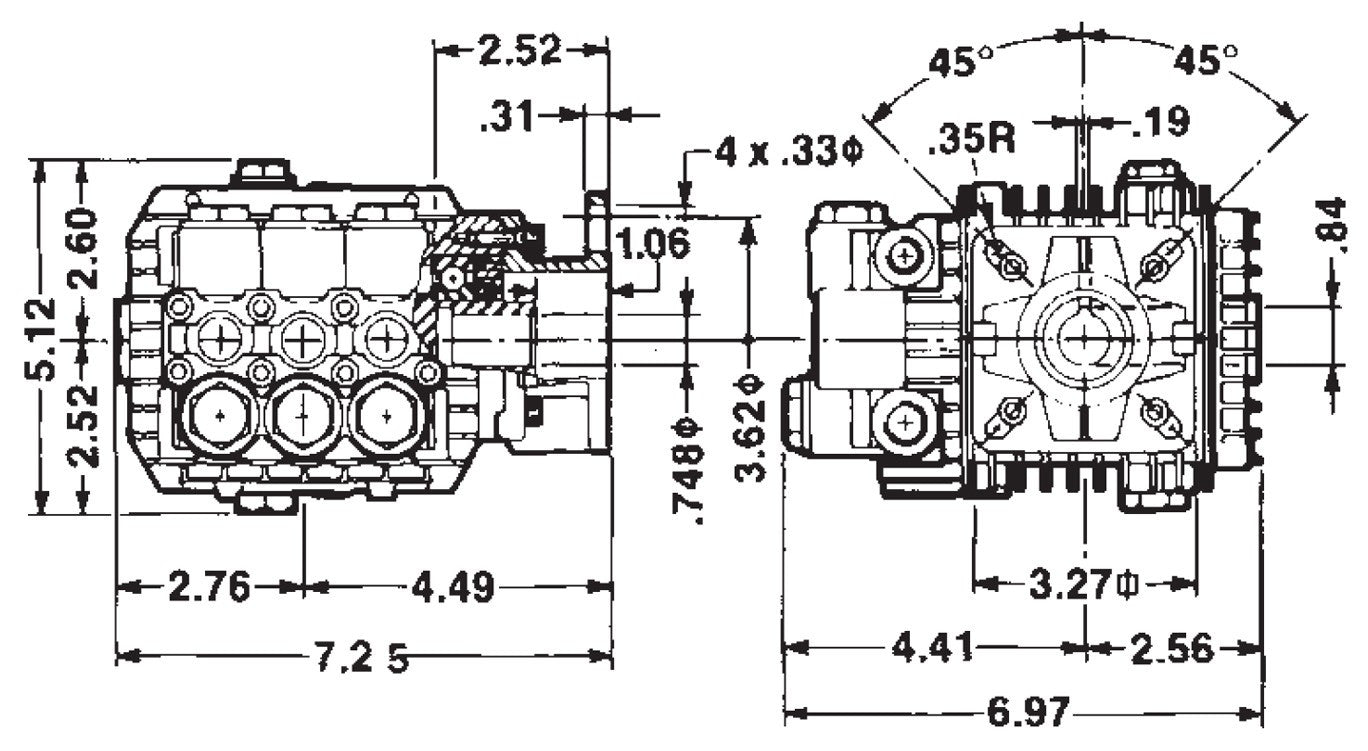

Pump Dimensions 7.0″ x 7.2″ x 5.1″
Crankcase Oil Capacity 11.2 oz (use GP Series 100 Oil)


Hollow Shaft – General Pump 51 Series Features:

  • Triplex Plunger Pump.
  • Forged brass manifold with exclusive lifetime warranty.
  • Die/cast, anodized aluminum oil/bath crankcase.
  • Unitized, stainless steel inlet and outlet valves.
  • Ideal for all general cleaning and misting applications.
Price
$399
Taxes and shipping calculated at checkout
In stock and ready for shipping
