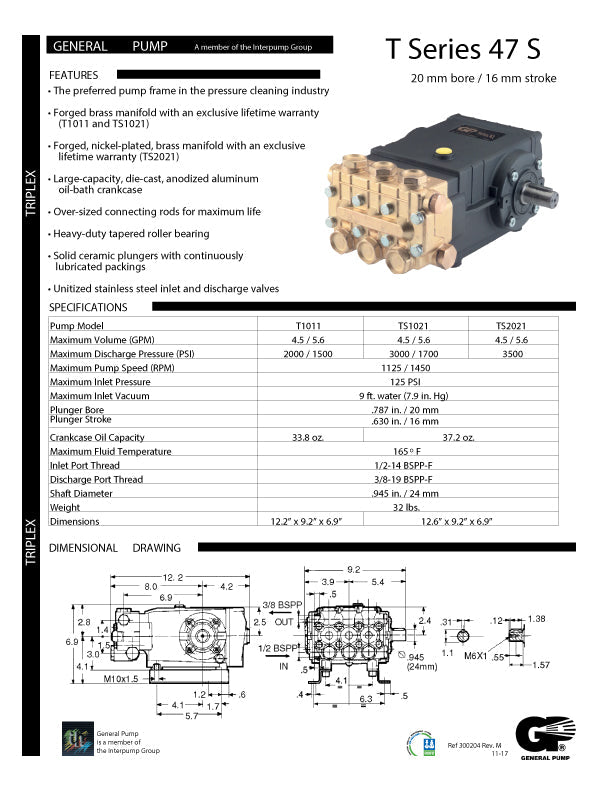

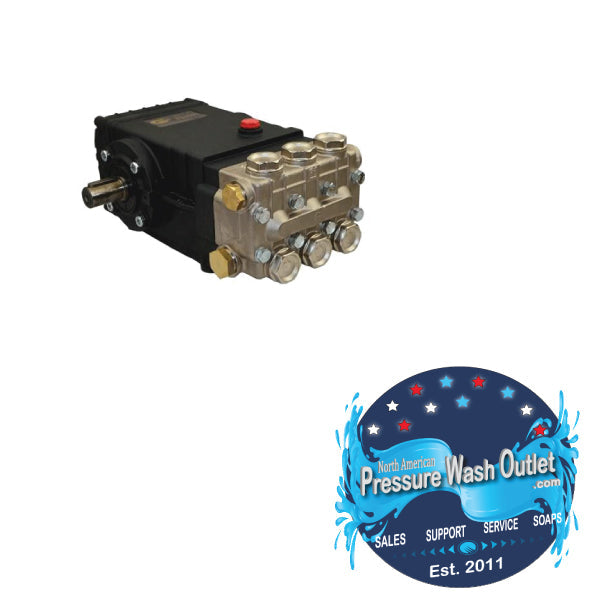

TS2021 PUMP by GENERAL PUMP (2012)

• Maximum Volume (GPM): 4.5 / 5.6

• Maximum Discharge Pressure (PSI): 3500
• Maximum Pump Speed (RPM): 1125 / 1450

• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
• Plunger Bore: .787 in. / 20 mm
• Plunger Stroke: .630 in. / 16 mm
• Crankcase Oil Capacity: 40.6 oz.
• Inlet Port Thread: 1/2-14 BSPP-F
• Discharge Port Thread: 3/8-19 BSPP-F
• Shaft Diameter: .945 in. / 24 mm
• Weight: 32 lbs.
• Dimensions: 12.6 x 9.2 x 6.9

Need to service your pump? Click Here for Service Instructions.
